Spring Design
Design information for engineers, such as spring calculation formulas,
which are the basis of spring design, can be found here.
- Tokai Spring HOME
- Spring Design
- Volute Springs: Things To Note In Spring Design
Volute
Springs

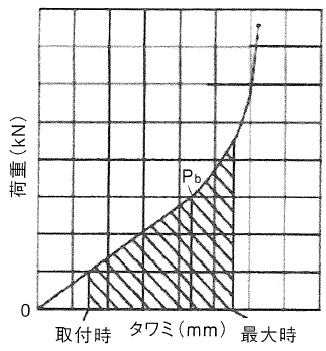

The shaded area (kN/mm) in the figure is the absorbed energy from between when the spring is mounted up to the maximum.
The setting stress is usually set between 1,000 N/mm² to 1,200 N/mm².
A compact shock absorber is achieved by utilizing the characteristics from the point where the spring characteristic becomes a straight line to the point where the horizontal spacing between adjacent plates becomes 0 (Pb).
We achieve this characteristic with high precision thanks to the superb technique of our craftsmen.
