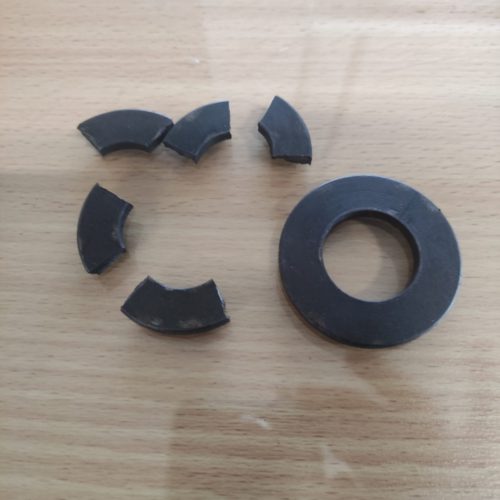

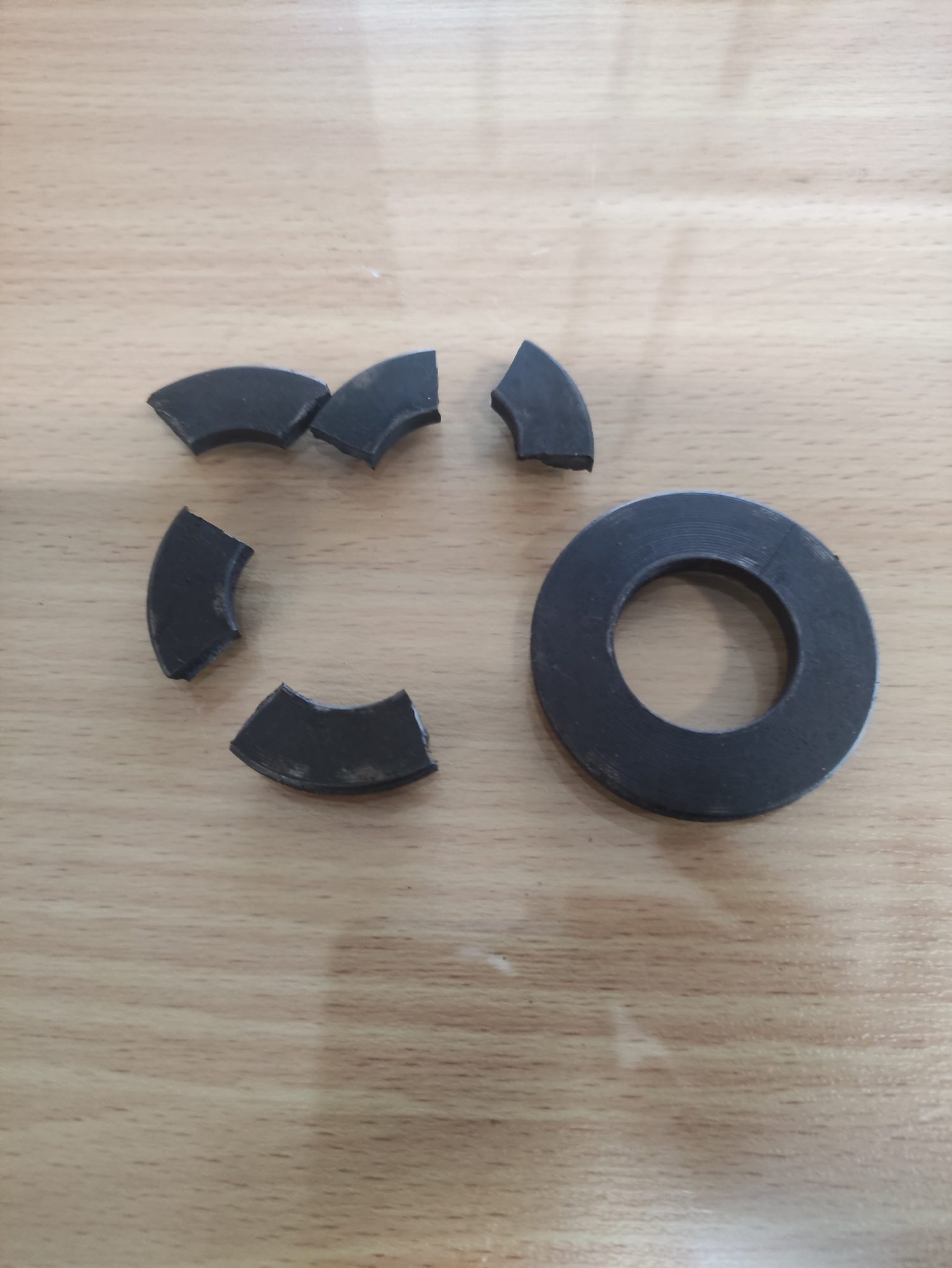

we have numbers of CNC milling machine ,we need disk spring for clamping force in spindle ,disk springs are out of standard size 50*25.4*4.5 ,after several years of working with the machine clamping force decreased, so we started to making new disk spring , we used from rebar steel 1.8159 ,
Then we did the forming,after that we did heat treatment , hardness: 46 HRC
but after 10 days, 2/3 parts broke.
We think the problem is from treatment
can you help us?
Attachments:
Dear Faramarz,
Thank you for your question!
If the hardness after heat treatment is 46HRC, it is basically within a range of acceptable hardness.
However, in case you measure the hardness of the broken springs and it deviates greatly from 46HRC, then heat treatment can be the cause.
However, it is not possible to conclude that heat treatment is the cause based only on the information and photos provided.
The following are the causes of breakage of disc springs, please use them as a guideline.
・A load exceeding the assumption is applied to the springs.
・The spring has a stroke that exceeds expectations.
・The springs are used beyond the expected lifespan
・It is used up to solid-height
・The temperature around the springs is high.
・The spring is corroded.
・There is a crack in the springs.
・The surface of the spring is too coarse.
・Hydrogen embrittlement due to coating treatment and the atmosphere around the spring
・Heat treatment
・Corrosion or surface coarseness of the springs due to the influence of the surface condition and material of the parts that the disc springs are in contact with
・Shot peening if it was performed
We hope this helps.
Best regards,
Tokai Spring’s Support Team
Dears All , thanks for your help
I have 2 request :
1. What information do you need to determine if the problem is heat treatment or not?
Please let me know so I can send it to you
2. can you give me a quotation for 1000 pcs disk spring 50*25.4*4.5
Dear Faramarz,
Hardness tests and structure observation are commonly used to define the cause.
You can also check the heat treatment conditions to see if it was conducted correctly or not.
For the quotation for the springs, please send us more details about dimensions, load requirements, application&usage environment to our email [email protected] so that we can support you better.
Best regards,
Dear all , tanks for your reply
After checking in the laboratory, I will let you know the result.
