Products by Application　CHRISTMAS TREES（WELLHEADS）
wellhead

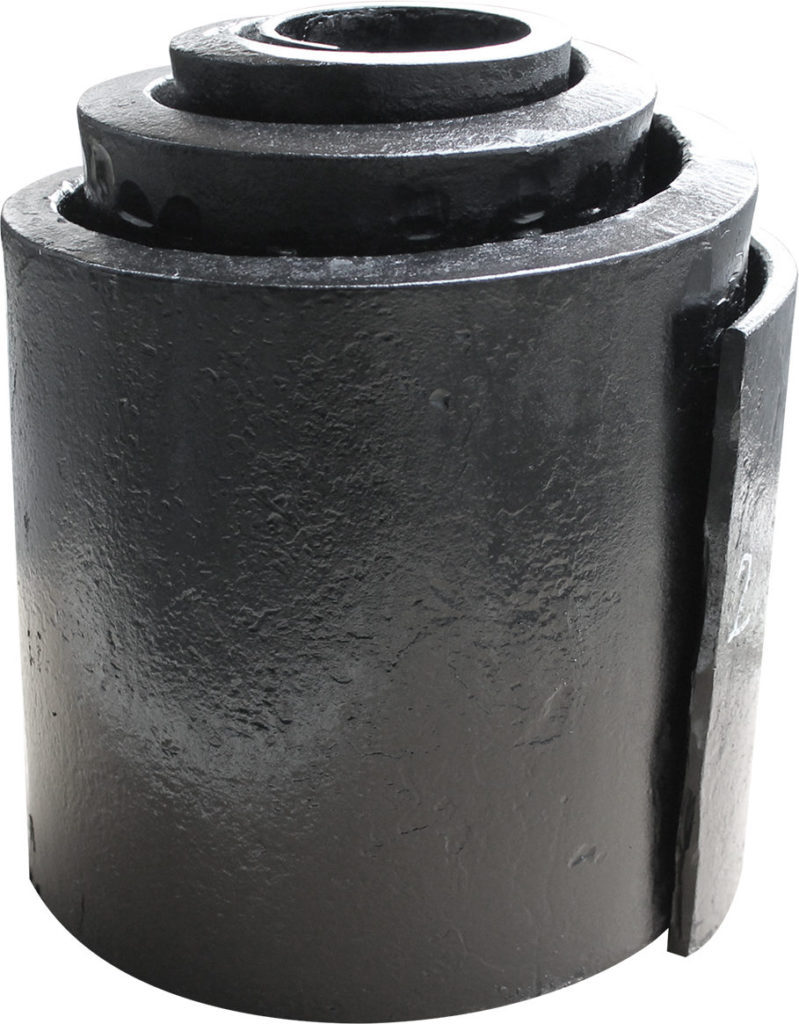

Volute springs for Christmas Trees (Wellheads)

Product Data

Product Name：Volute springs

Specification：

custom made

Advantages of using Tokai Spring Industries’ products

Custom-made from just one spring for replacement


The Christmas Trees (Wellheads) used for oil and natural gas mining use large valves, and therefore the volute springs for them also need to be large.
With the advantage of being a custom-made spring manufacturer and the experience in producing large springs for the valve industry and steelmaking industry for more than 70 years, we have the technology and know-how to produce volute springs to a maximum material thickness of 32 mm, and an outer diameter of 450 mm. The maximum load that the springs can withstand can be up to 47 tons. Even if the exact dimensions are unknown, we can still perform reverse-engineering with the old springs by measuring the dimensions accurately and creating a detailed drawing. This is why Tokai Spring can provide the best products and solutions for the maintenance of Christmas Tree valves.

Applicable materials

  • SUP10(Correspond to 51CrV4,6150)

    • Applicable spring types

  • Volute springs

    • FROM R&D TO AFTER-SALES SUPPORT

    • R&D and Prototyping

      SUPPORTING clients who conduct R&D and prototyping activities by committing to carrying out research and collecting necessary data.

    • Manufacturing

      Specializing in producing small-lot orders of 5 or less. we can reproduce the exact same springs that were exclusively made years ago thanks to our in-house production data. Therefore, our clients can completely rely on our reproducibility, short delivery time and product quality.

    • Replacing & Repairing

      Ability to reproduce springs Even if there is no drawing.

    Tokai Spring’s after-sales service

    We provide excellent after-sales service and support so that our clients can use products without any worries.
